Seahorse Biomimicry



Seahorse Skeleton Biomimicry

The skeletal system of the seahorse consists of stacked rings of bony plates that enclose the spine and serve as protective armor. These plates can compress vertically and slide laterally, providing an effective defense mechanism against predators. Studies on the resilience and modularity of a seahorse's skeletal system are used to create an abstract physical analogue and pavilion proposal.

Located on Walnut Street Bridge in West Philadelphia.

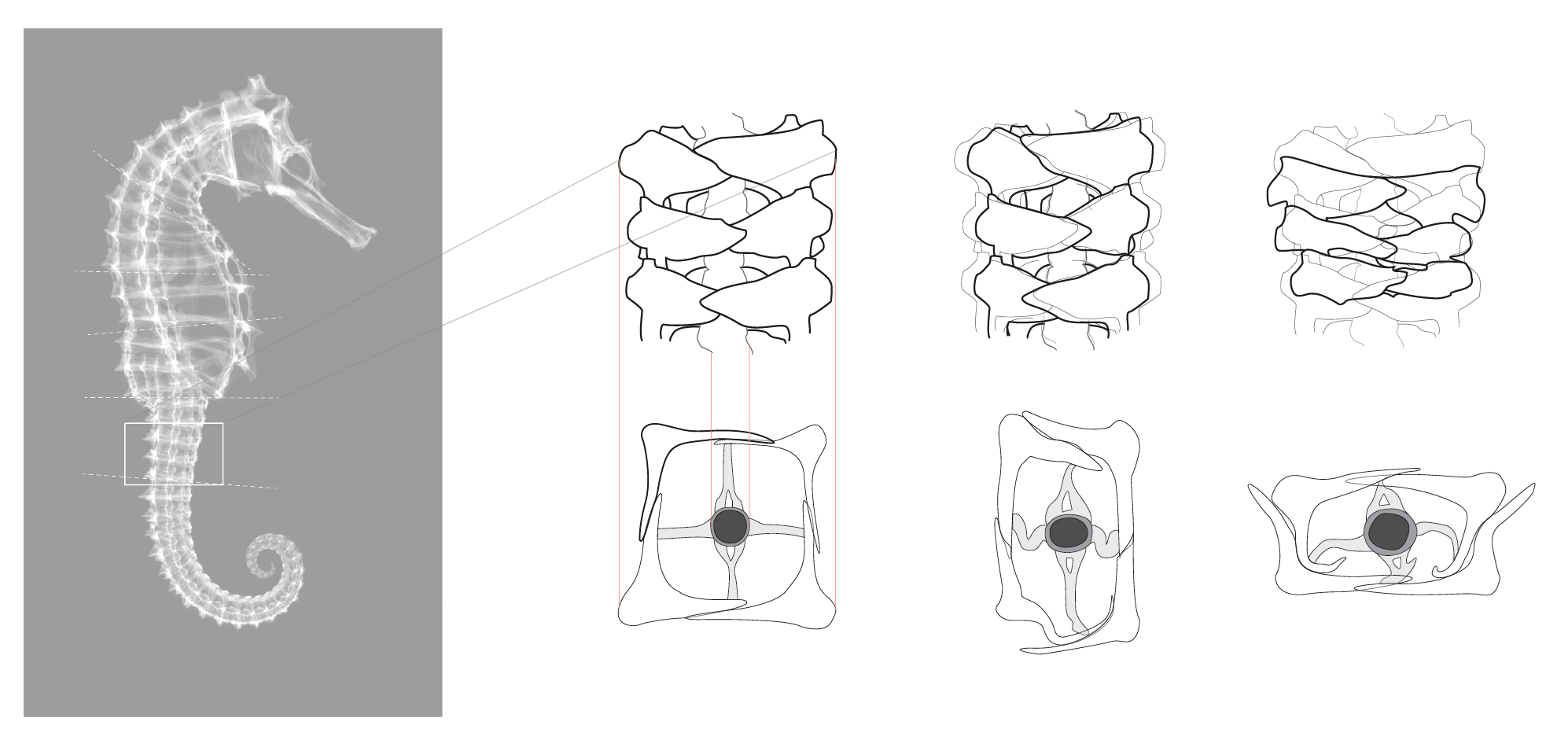

Analysis of Seahorse Skeleton



extracting plan and elevation views of bony plate





abstraction of one skeleton ring

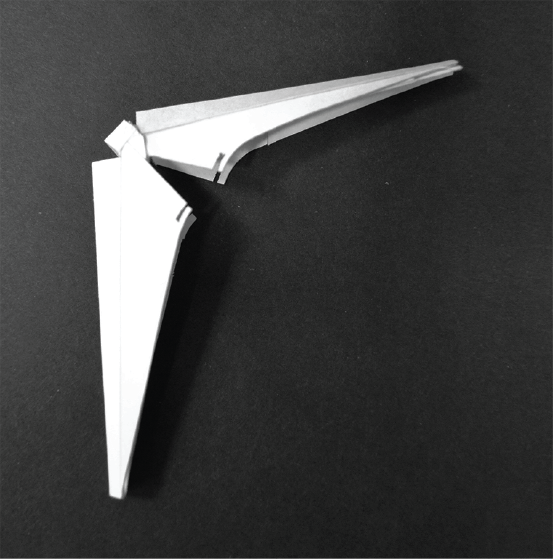

construction and folding of analogue module

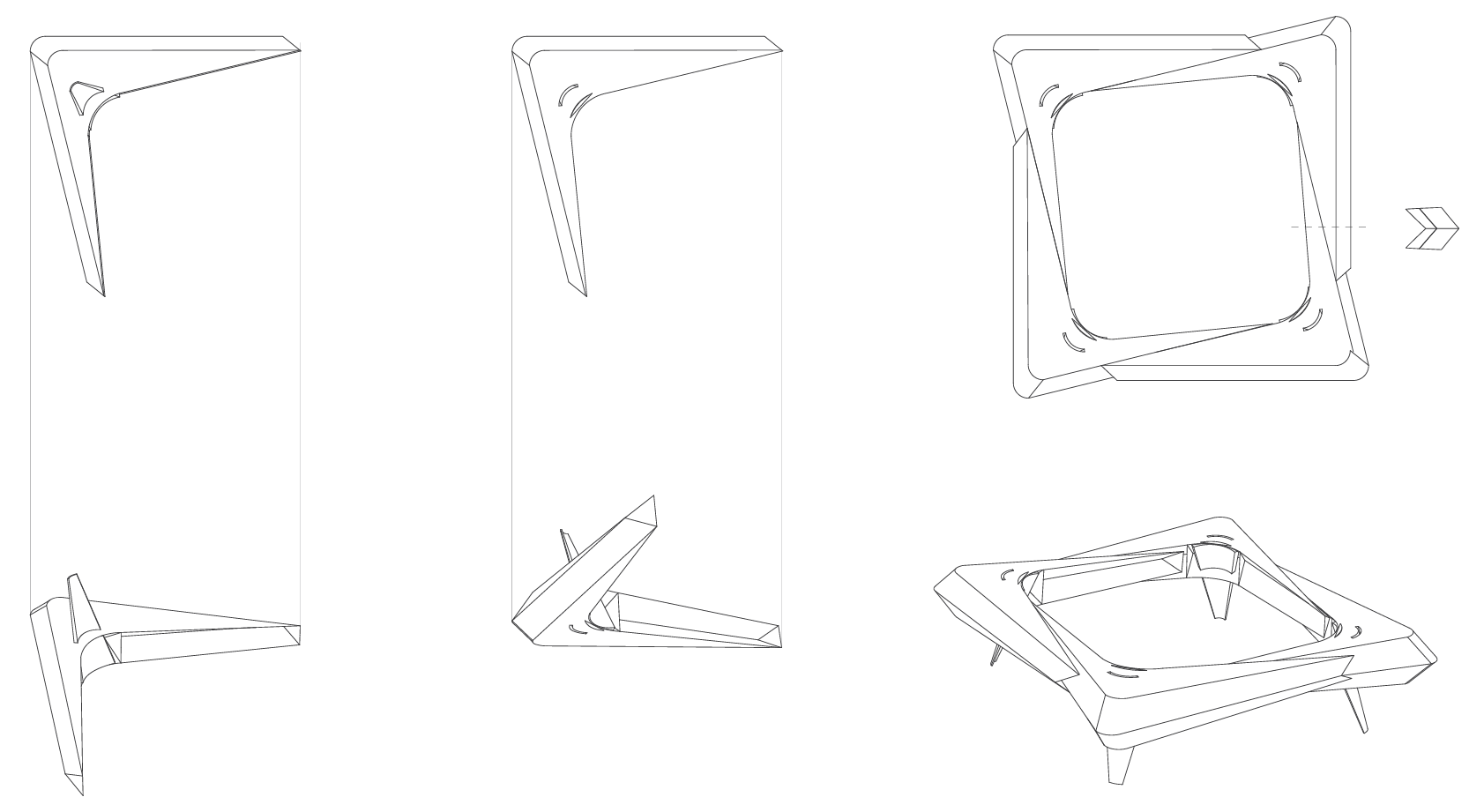

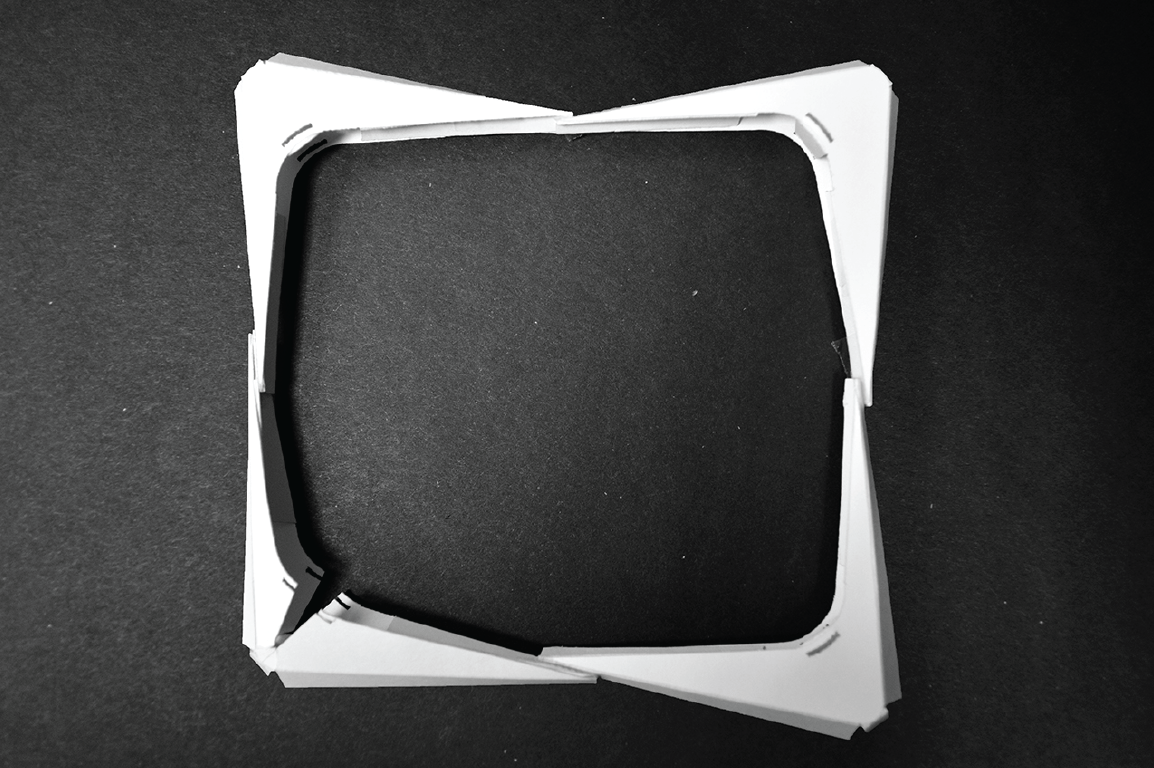

assembly of one bony plate layer using four modules





abstracted section diagrams

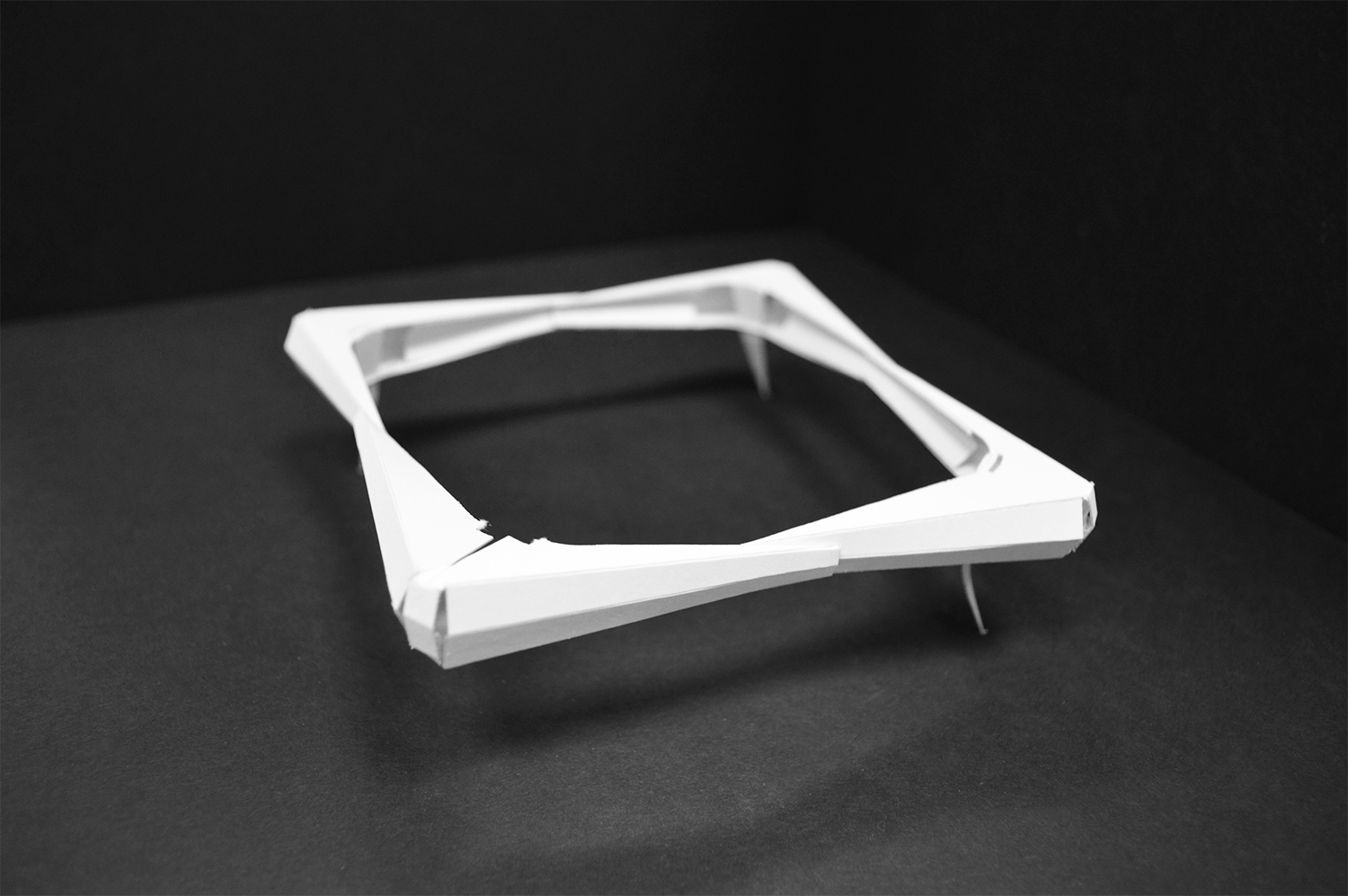

Bristol Board Model





Development of Pavilion




site plan

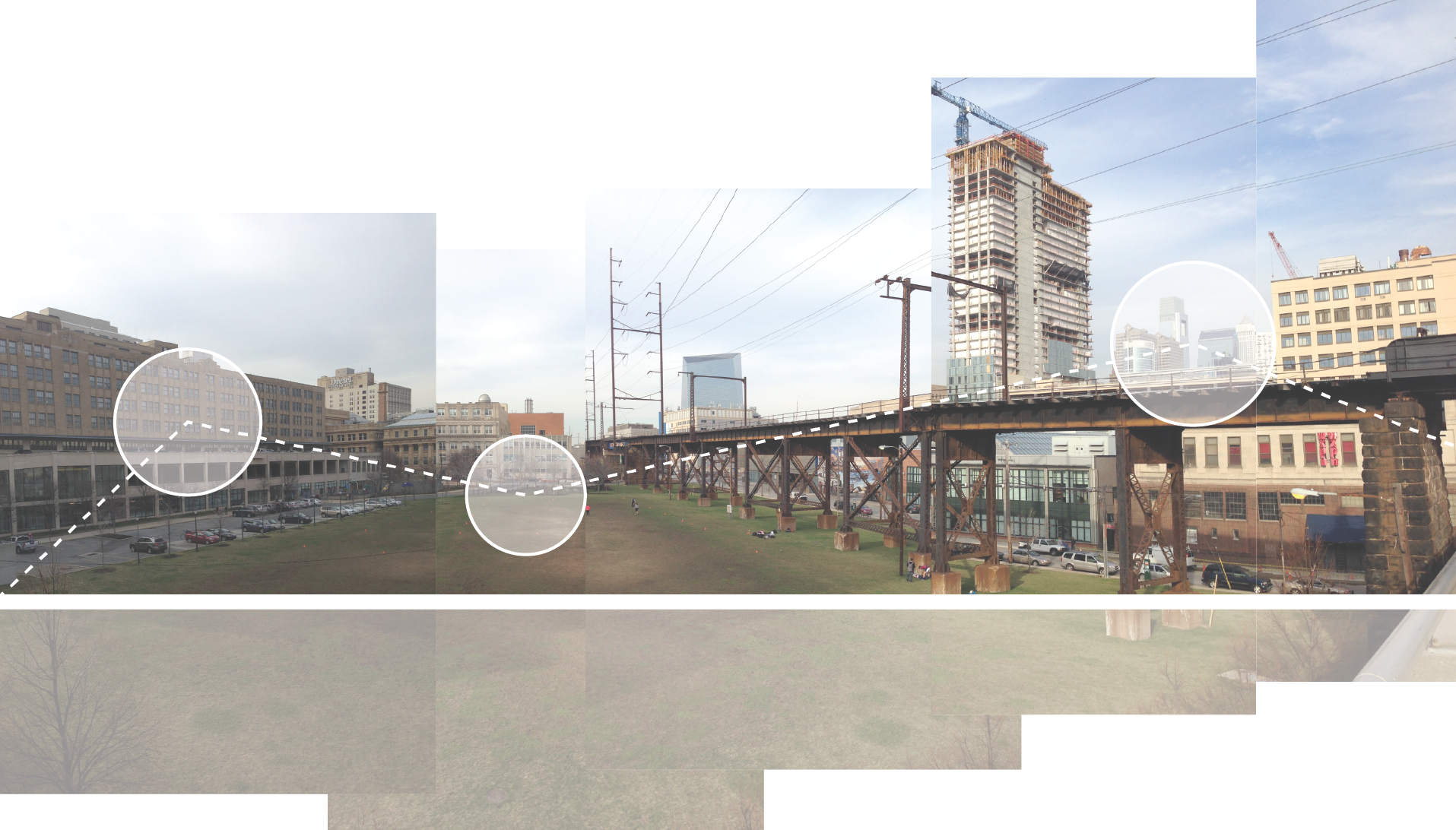

targeted views looking over walnut street bridge

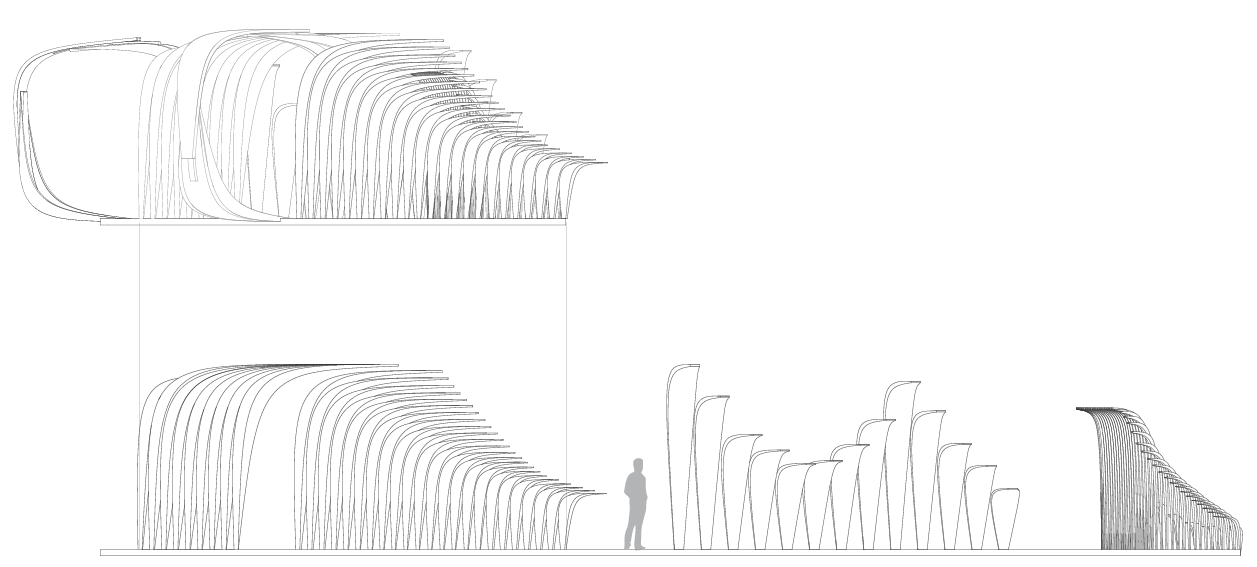

exploded view of pavilion modules




Rendered installation

interior and exterior views

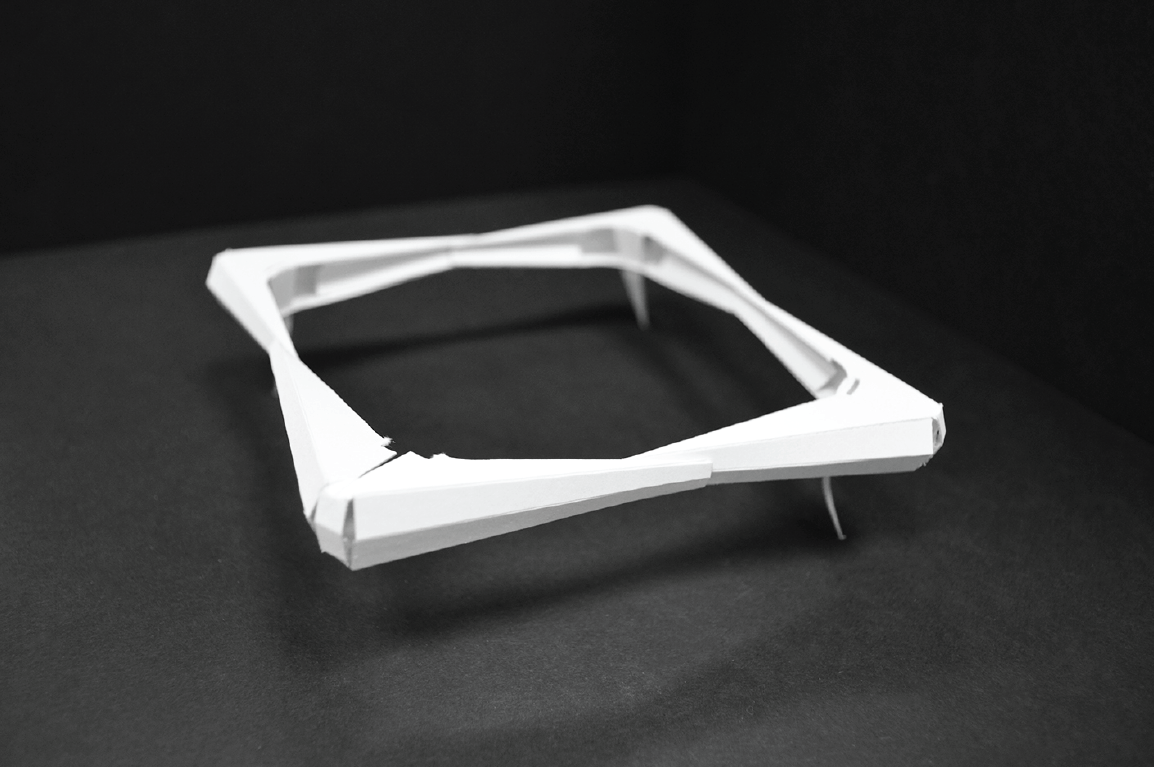

Physical Model



<
>
