Schuylkill River



Schuylkill River Park Installations

The site is analyzed through its topography and qualities found in abstract geometries, convergence points, clear divisions between the natural and built environment, and a phenomenon involving the sun, clouds, and water. Two installations based on these analyses are proposed with one revealing the geometric and compositional qualities of the site and the other illustrating the phenomenon via an interactive element.

Located by the Schuylkill River in Philadelphia, PA.




schuylkill river park on an autumn afternoon



Site Analysis: Views

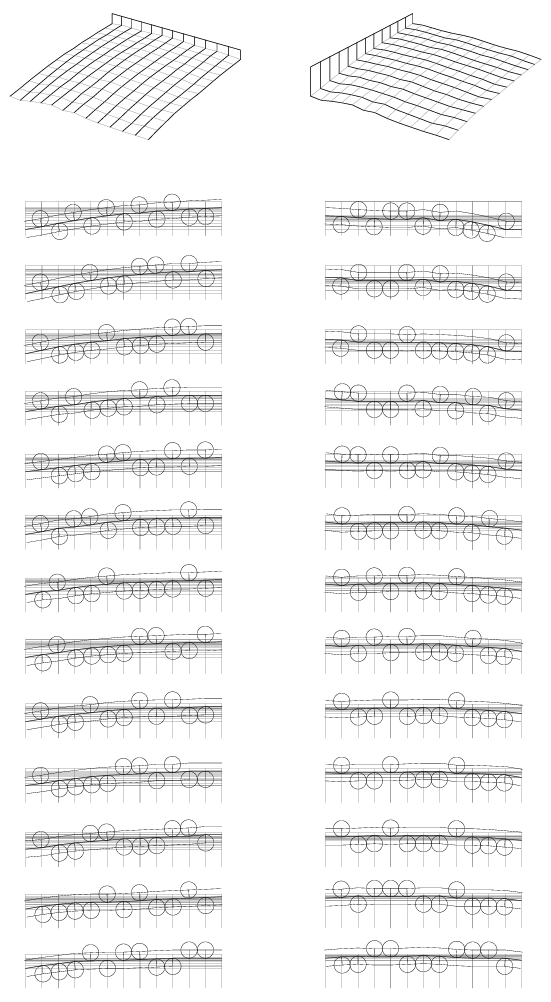

measured topography

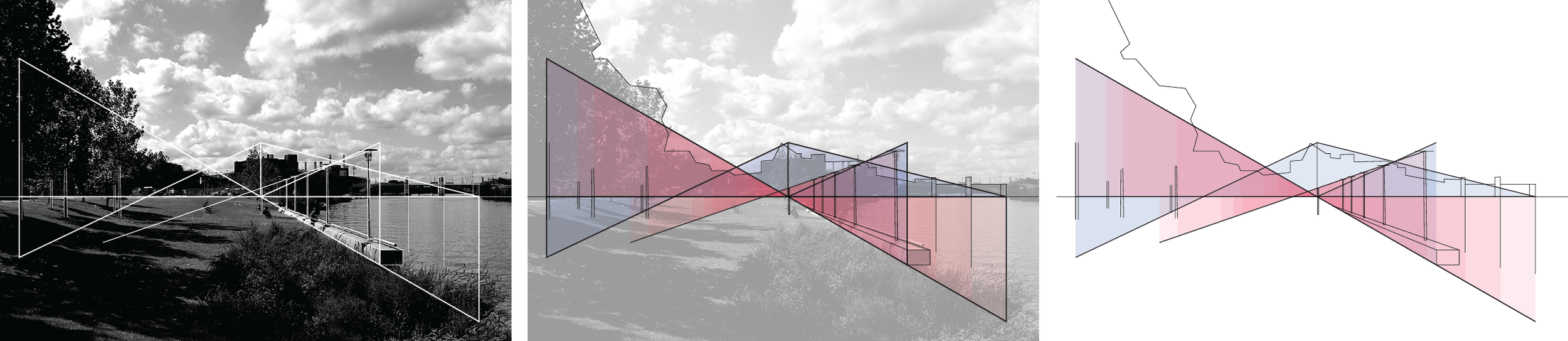

view highlighting asymmetry in site





view highlighting divisions in natural and built elements





Installation 1:

consists of a series of panels through which to view a strong division in the site. one set mirrors the man-made, constructed side on the west while the other set highlights the natural, living side on the east.

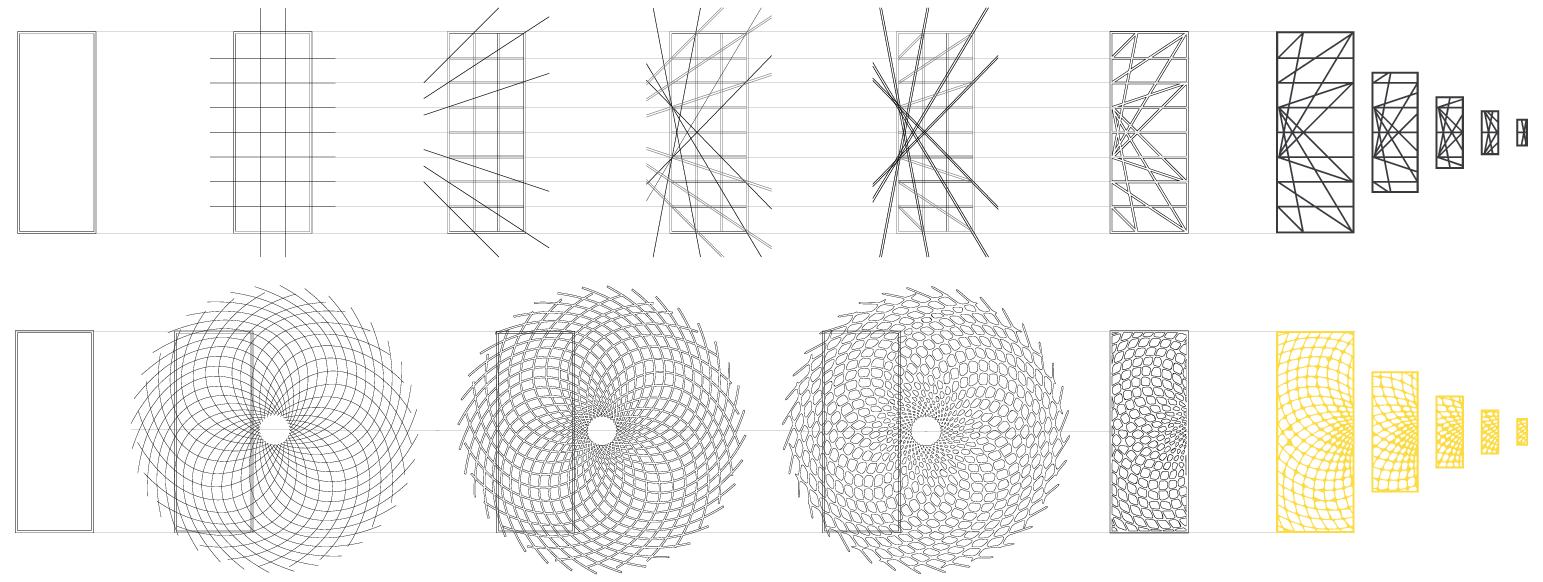

development of panels



series of overlapping panels




Site Analysis: Phenomenon







Installation 2:

consists of a simulation of the relationship between clouds, sun, and the river. visitors engage with the installation by walking on the reflective “water” and moving translucent “clouds” to create different spaces in light.



configuration of cloud and track system



exploded axonometric




systematic folding of "water" base




physical model constructed using matte board, plywood, foam core



<
>
